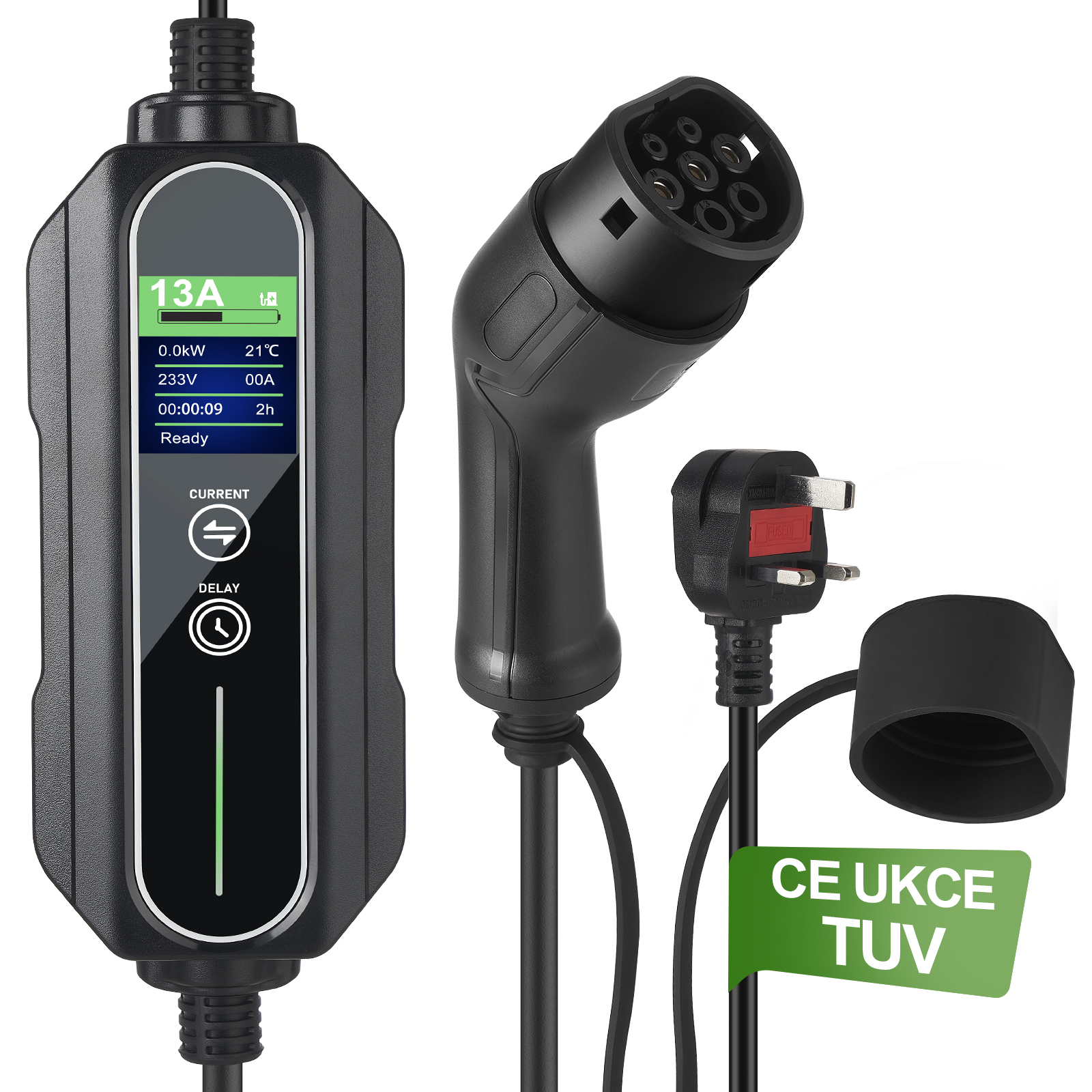

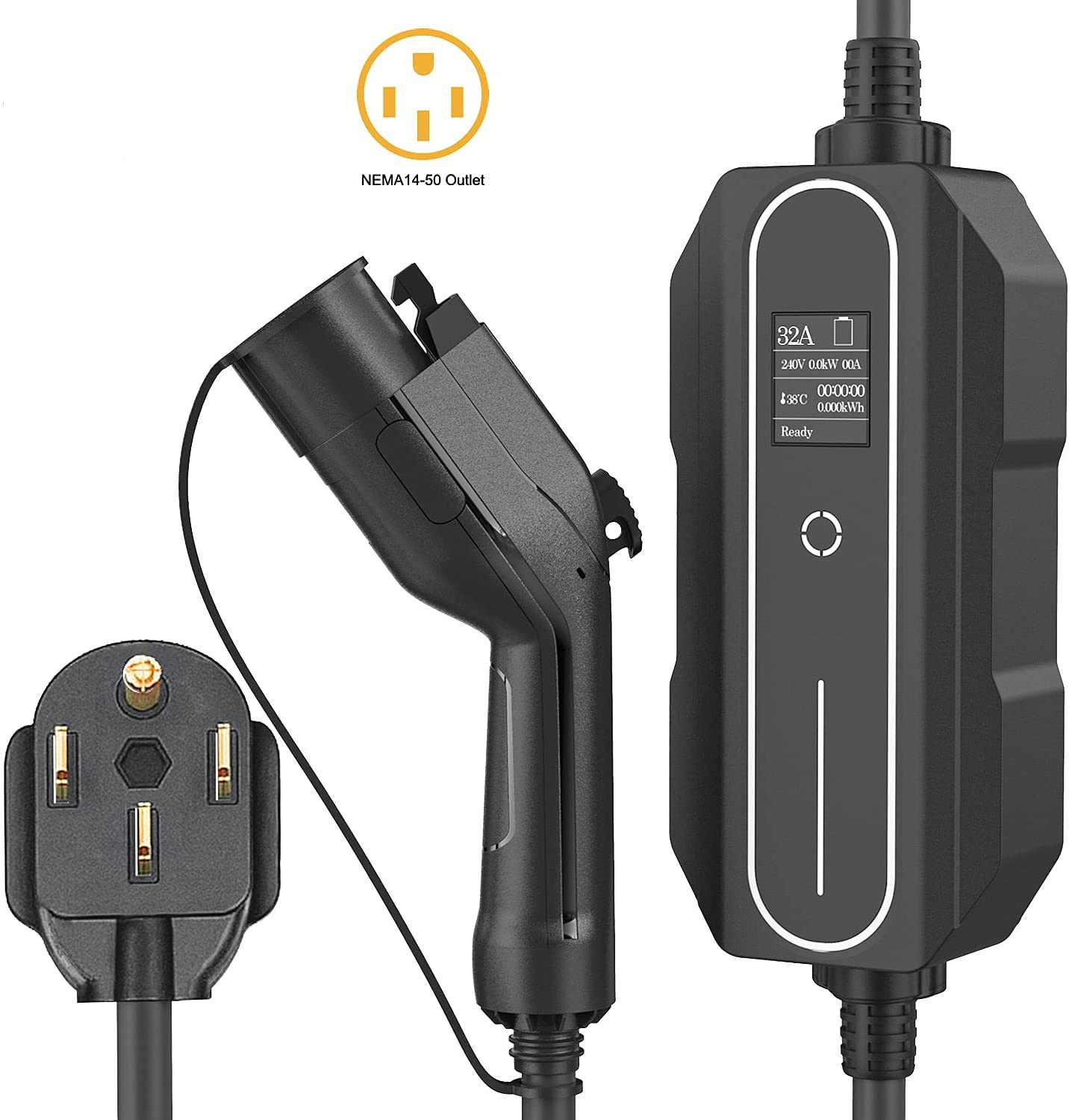

Portable EV Charger
Smart, Durable, Mulitifuntional




Features
1. Charging plug meet SAE J1772 /IEC62196/GB/T standard
2. The power plug meets the regulations and requirements of VDE0620-1, and can be equipped with temperature protection device
3. The control box conforms to the control principle of IEC 62752
Mechanical properties
1. Mechanical life:no-load plug in/pull out>10000 times
2. Impat of external force:can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
1. Rated working current: 16A/32A
2. Operation voltage:230V/440V
3.Insulation resistance:>1000MΩ(DC500V)
4. Terminal temperature rise:<50K
5.Withstand Voltage:2000V
6.Contact Resistance:0.5 mΩ Max
Applied Materials
1. Case Material:Thermoplastic,flame retardant grade UL94 V-0
2. Pin: copper alloy, silver plated surface + top thermoplastic
3.Excellent protection performance,plug IP44(working condition), PSE IP67
Environmental performance
1. Operating temperature:-30℃~+50℃
Control box function
1. Leakage protection (restart recovery)
2. Overvoltage and undervoltage protection (self check recovery)
3. Overload protection (self test recovery)
4. Lightning protection
5.Adjustable current and pre charge
